AC Infinity Air Filter Set PRO 100 mm – Smart Inline Fan & Activated Carbon Filter

The AC Infinity PRO 100 mm Air Filter Kit is a compact, all-in-one solution for precise ventilation of enclosed indoor spaces . It combines a quiet EC inline fan with a highly effective activated carbon filter and an intelligent Smart Controller that automatically monitors and regulates temperature and humidity.

This kit is ideal for utility rooms, AV cabinets, air systems, or small indoor applications where quiet, energy-efficient airflow is required.

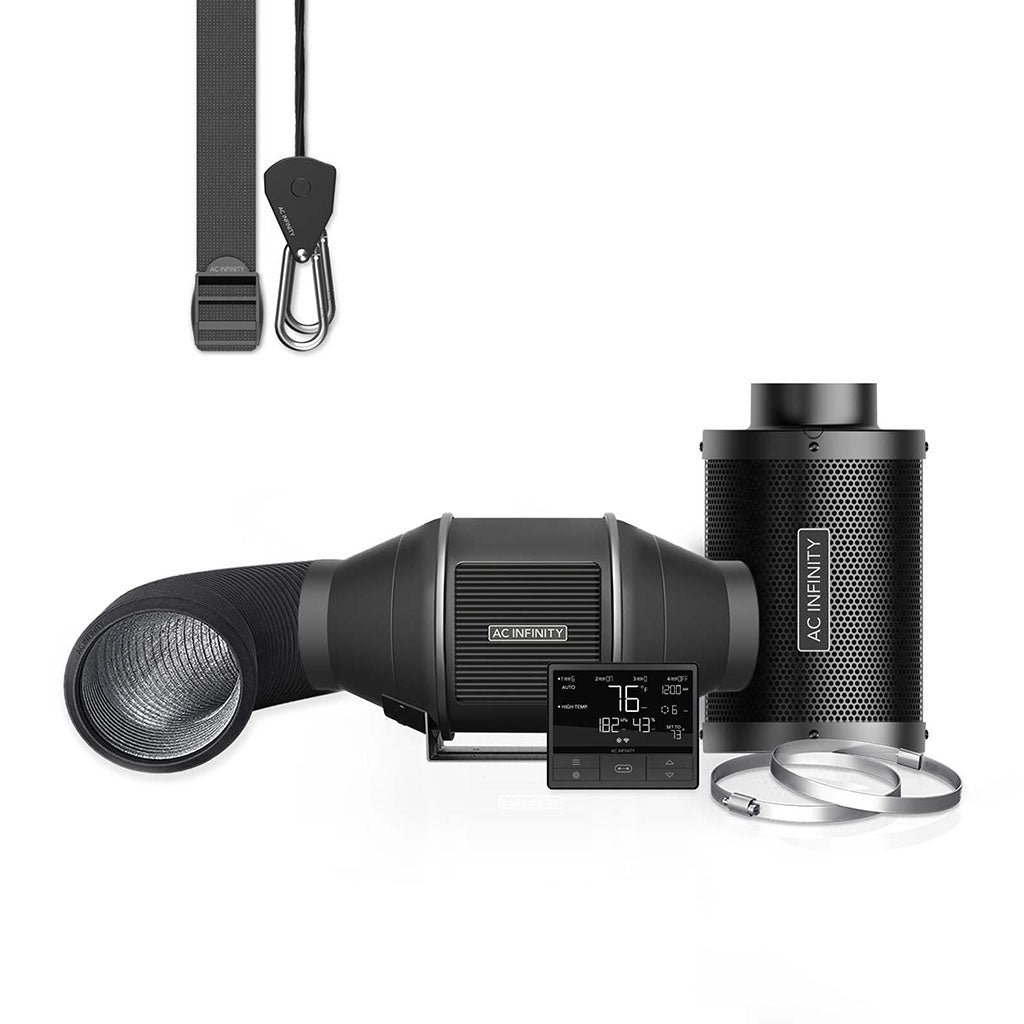

Scope of delivery

• EC duct fan (100 mm) with quiet EC technology

• Activated carbon filter for odor-neutral air extraction

• Smart controller with touchscreen and sensors

• Flexible hose (approx. 3 m), hose clamps

• Power cable & mounting material

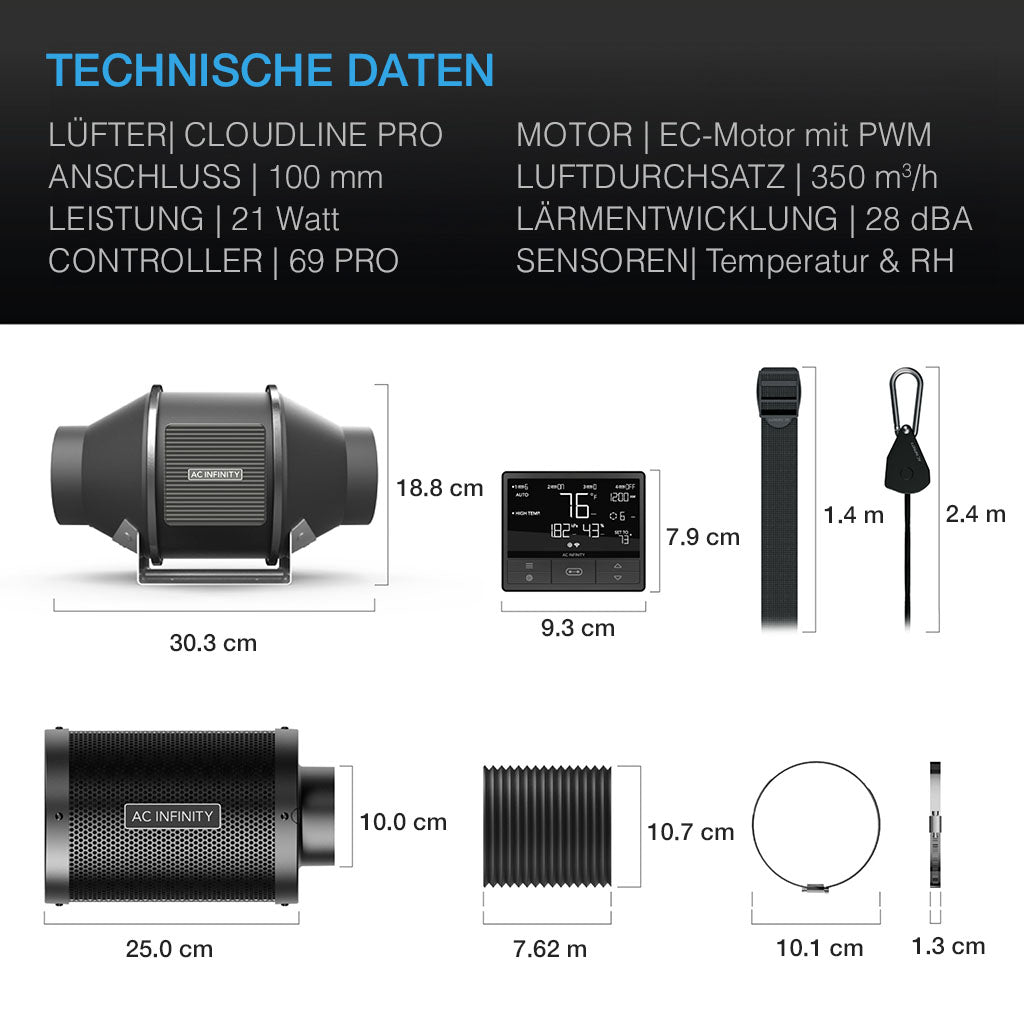

Technical details (verified)

• Pipe diameter: 100 mm (4 inches)

• Air flow rate max.: approx. 348 m³/h

• Motor: Electronically commutated EC motor (energy-efficient & durable)

• Control: Smart Controller with touch display, temperature & humidity sensor

• Filter: High-quality activated carbon for maximum odor binding

• Noise level: less than 29 dBA

• Functions: Automatic mode, timer, alarms, min/max values ​​adjustable

Advantages at a glance

• ✅ Compact, fully automated air filter system

• ✅ Optimal control of temperature and humidity

• ✅ Effective odor neutralization through activated carbon filter

• ✅ Very quiet continuous operation with efficient EC motor

• ✅ Plug-and-Play: ready for use in many interior applications
