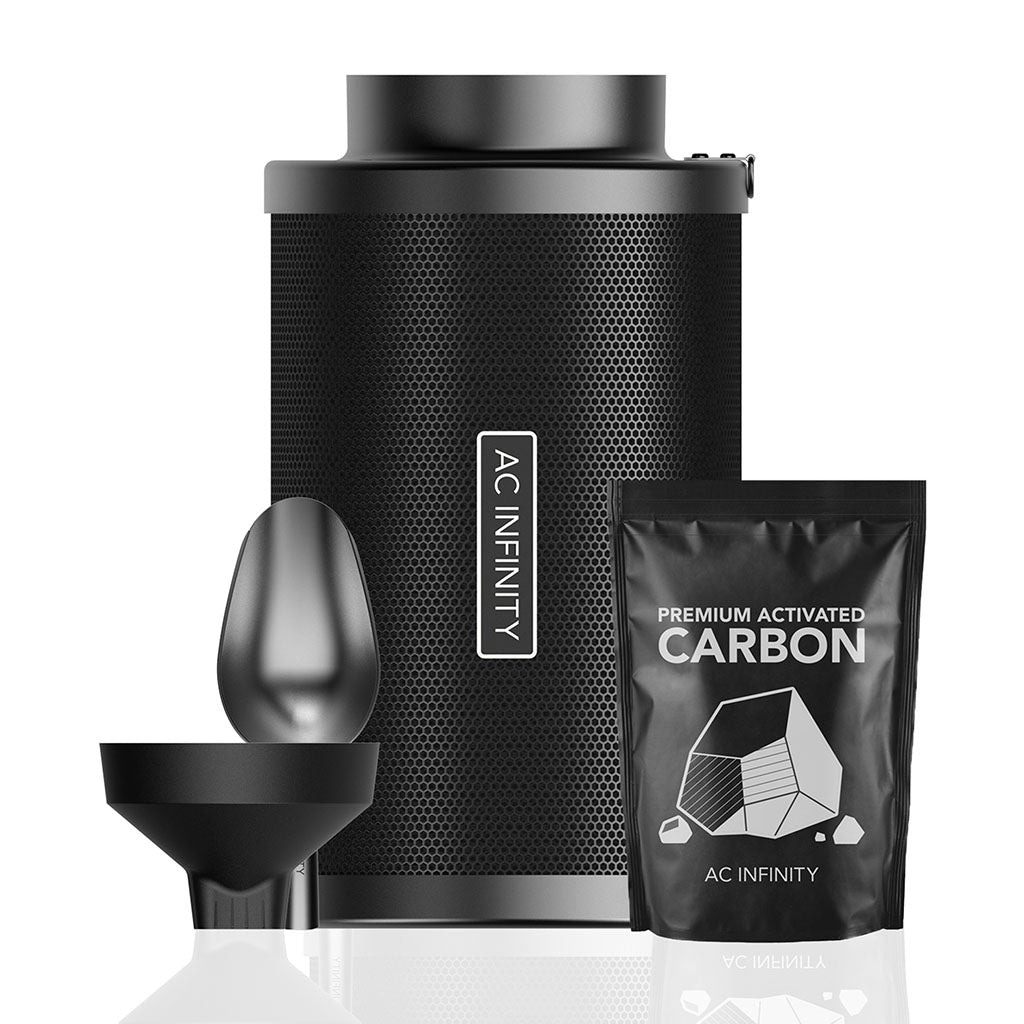

AC Infinity Refill Activated Carbon Filter Set 200 mm – reusable

The AC Infinity Refill Activated Carbon Filter Kit is the perfect solution for large-volume, closed-loop ventilation systems. The refillable carbon design provides effective air purification with low running costs and minimal maintenance.

Scope of delivery

• Steel housing Ø 200 mm with flange connection

• Pre-charged activated carbon filling (RC412, approx. 38 mm thick)

• Washable pre-filter to protect the carbon layer

• Refill funnel & dosing scoop

• Mounting material including cinch clamp & hanging straps

Technical details

• Connection size: 200 mm

• Max. air flow: approx. 1,660 m³/h

• Coal type: High-quality Australian activated carbon, class RC412

• Filter thickness: approximately 38 mm thick carbon core

• Housing: Powder-coated steel with aluminum end rings, robust and durable

• Pre-filter: Washable, reusable

• Dimensions: approx. 60 cm length × 34 cm diameter

• Lifespan per filling: about 9–15 months depending on use

• Application: large closed air systems with high air exchange rate

Advantages at a glance

• ✅ Refill filter saves long-term costs & reduces waste

• ✅ Strong airflow without loss of efficiency

• ✅ Ideal for technical rooms, workshops & interior ventilation

• ✅ Easy to clean thanks to refill funnel & washable pre-filter

• ✅ Compatible with all 200 mm exhaust systems
