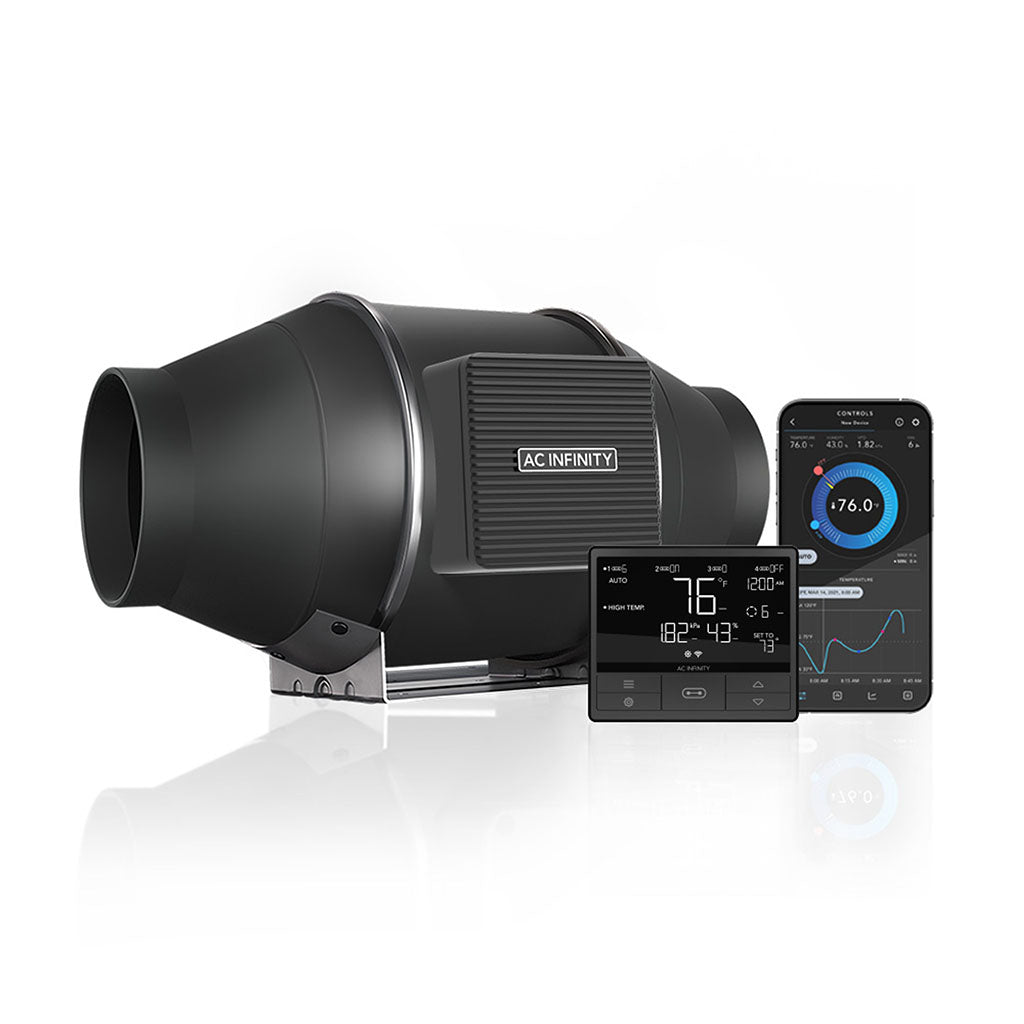

AC Infinity CLOUDLINE PRO T4 - 100mm EC Fan with Smart Controller

The Cloudline PRO T4 is a compact, powerful 100 mm inline fan with an energy-efficient EC motor. It features an intelligent Smart Controller with integrated temperature and humidity sensors, which automatically adjusts the airflow to the ambient conditions. Ideal for technical rooms, air conditioning systems, AV cabinets, or other ventilated indoor areas.

Scope of delivery

• EC duct fan (100 mm)

• Smart controller with touch display

• Temperature & humidity sensor

• Mounting material, cable, instructions

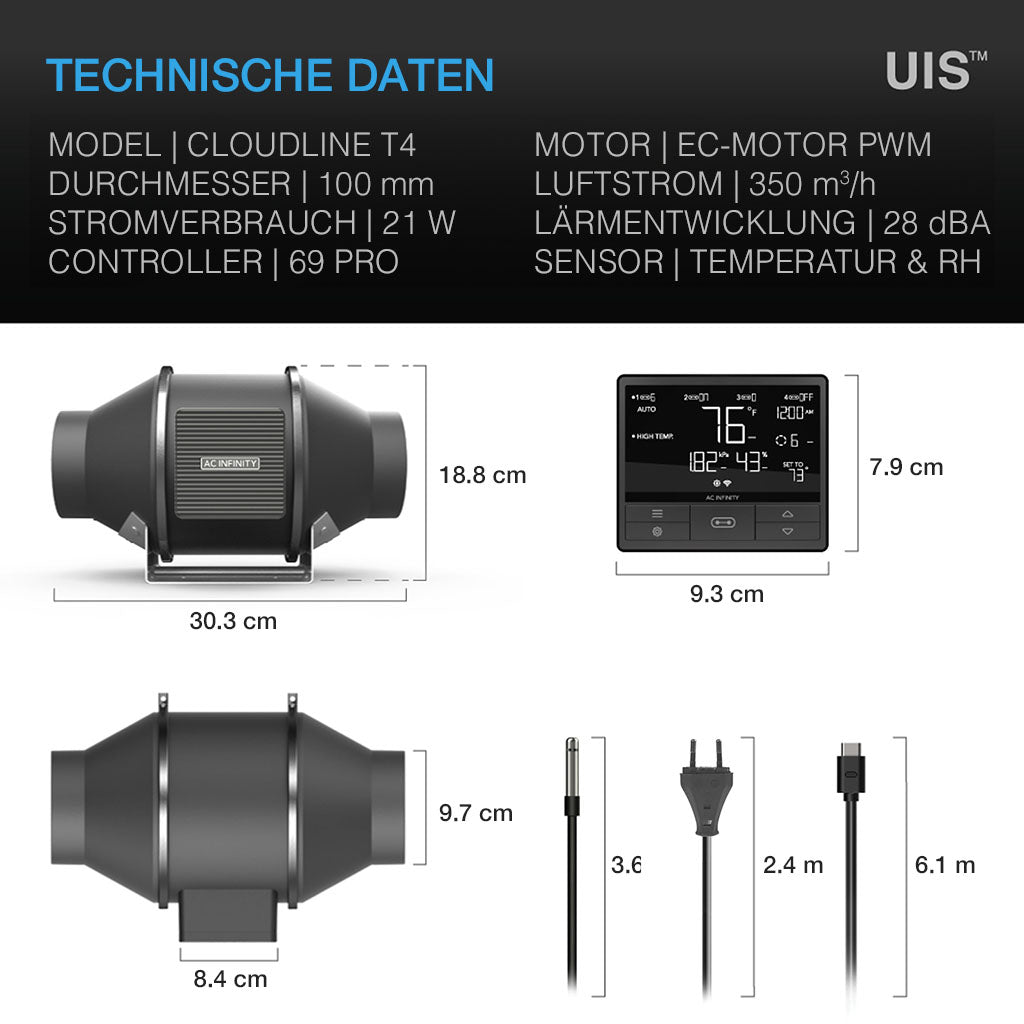

Technical details (verified)

• Pipe diameter: 100 mm

• Max. air flow: approx. 348 m³/h

• Noise level: approx. 28 dBA

• Static pressure: approx. 223 Pa

• Motor: EC technology, PWM controlled, low maintenance

• Service life: approx. 67,000 operating hours

• Control: Smart Controller with automatic, timer and alarm functions

• Voltage: 100–240 V AC

• Protection class: IP44 (dust and splash-proof)

Advantages at a glance

• ✅ Automatic control through precise sensors

• ✅ Very quiet operation with a compact design

• ✅ Robust workmanship with protection class IP44

• ✅ EC motor for efficient continuous operation

• ✅ Easy installation, ready to use
